Description

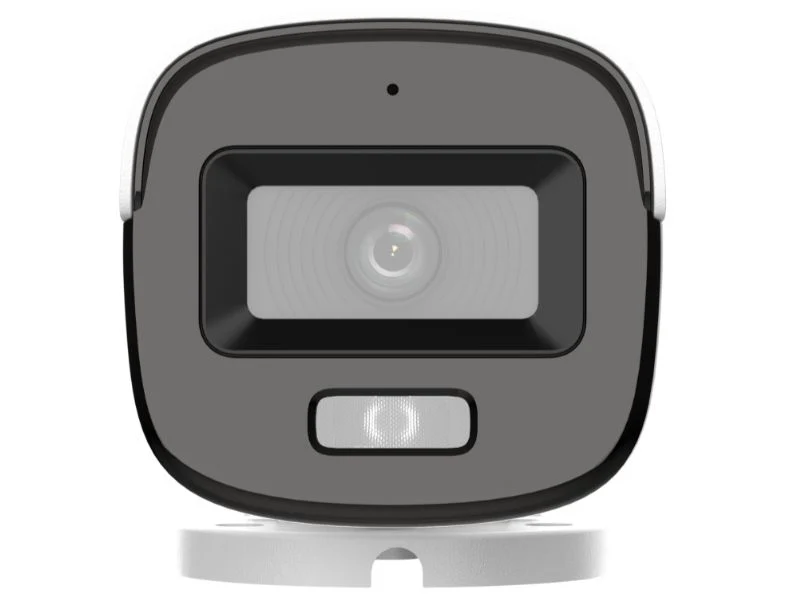

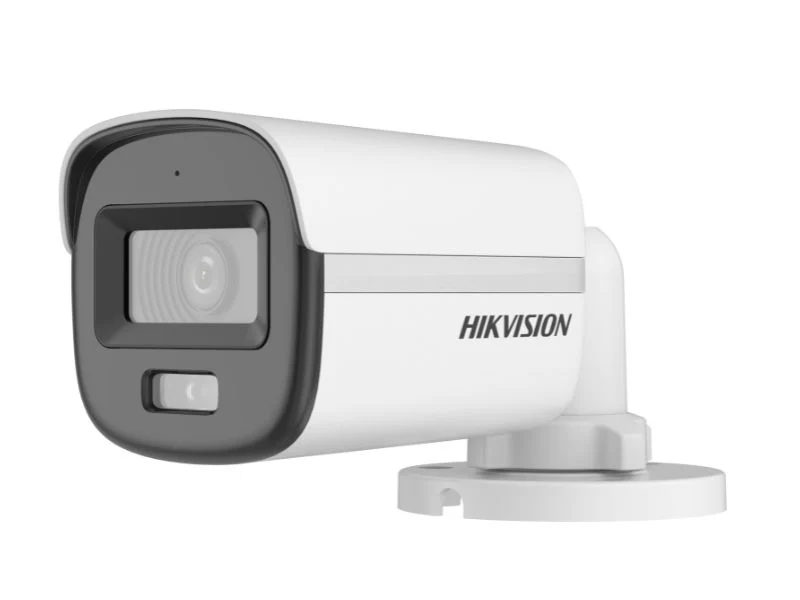

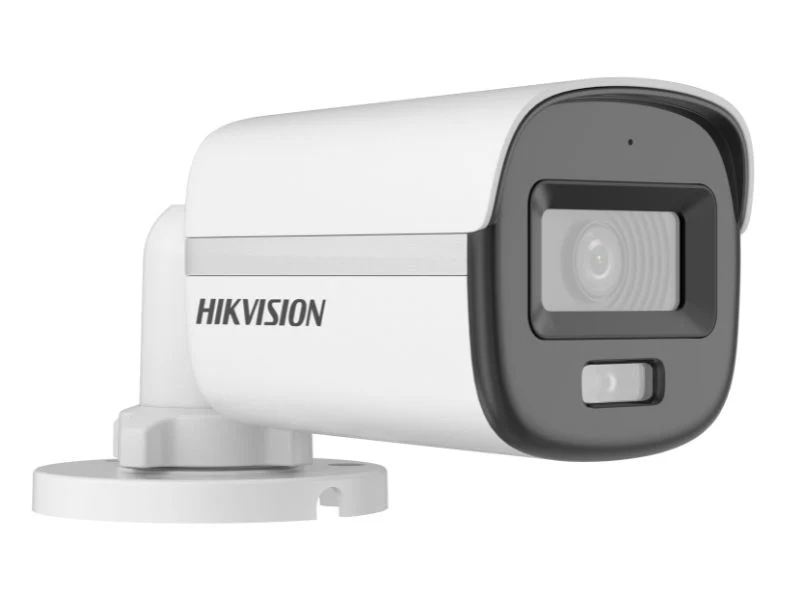

2 MP Smart Hybrid Light with ColorVu Fixed Mini Bullet Camera
High quality imaging with 2 MP, 1920 × 1080 resolution
24/7 color imaging with F1.0 aperture
Smart-Hybrid light, optimize your security with flexible lighting options
3D DNR technology delivers clean and sharp images
2.8 mm, 3.6 mm fixed focal lens
Up to 20 m white light distance for bright night imaging
Up to 20 m IR distance for bright night imaging
High quality audio with audio over coaxial cable, built-in mic
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP67)
Camera
Image Sensor
2 MP CMOS
Max. Resolution
1920 (H) × 1080 (V)
Min. Illumination
0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time
PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & Night
ICR
Angle Adjustment
Pan: 0° to 360°,Tilt: 0° to 90°,Rotate: 0° to 360°
Signal System
PAL/NTSC
Lens
Lens Type
2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 126°
3.6 mm, horizontal FOV: 84°, vertical FOV: 46°, diagonal FOV: 98°
Lens Mount
M12
Microphone
Pickup Distance
In a radius of up to 5 m
Amount
1
Illuminator
Supplement Light Type
IR,
White Light
Supplement Light Range
IR: Up to 20 m,White Light: Up to 20 m
Image Parameters Switch
STD/HIGH-SAT/HIGHLIGHT
Image Settings
Brightness, Sharpness, Anti-banding, AGC
Frame Rate
TVI: 1080p @25 fps/30 fps
CVI: 1080p @25 fps/30 fps
AHD: 1080p @25 fps/30 fps
CVBS: PAL/NTSC
Day/Night Mode
Auto/Color
Wide Dynamic Range (WDR)
Digital WDR
Noise Reduction
3D DNR/2D DNR
Image Enhancement
DWDR,
BLC,
HLC,
Global
White Balance
Auto, Manual
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
General
Material
Front cover: Plastic, Main body: Metal
Power
12 VDC ± 25%, max. 2.9 W,
*You are recommended to use one power adapter to supply the power for one camera.
Dimension
161.1 mm × 68.4 mm × 65.2 mm (6.34″ × 2.69″ × 2.57″)
Approx. 395 g (0.87 lb.)
Operating Condition
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
Communication
HIKVISION-C
Language
English
Approval
Protection
IP67
