Description
Up to 20 m IR distance for bright night imaging. Up to 20 m white light distance for bright night imaging.
Key features
- Built IN MIC / dual light

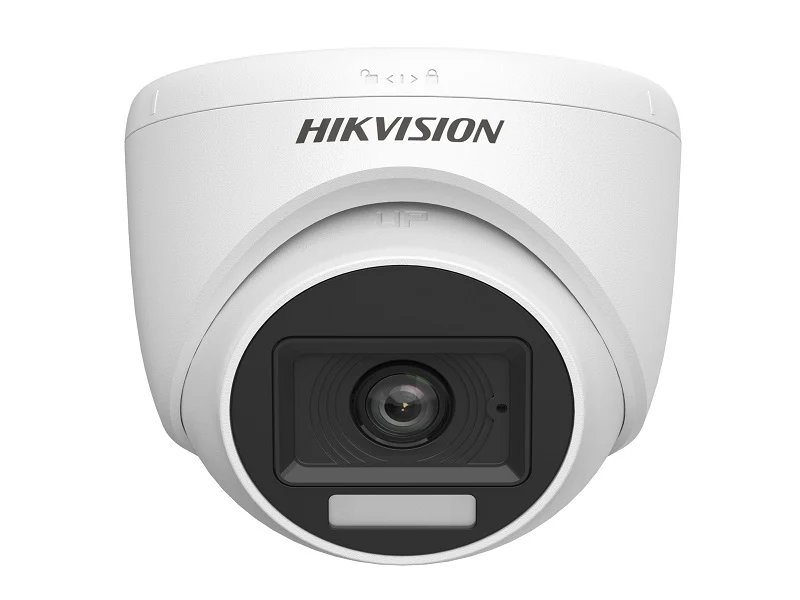

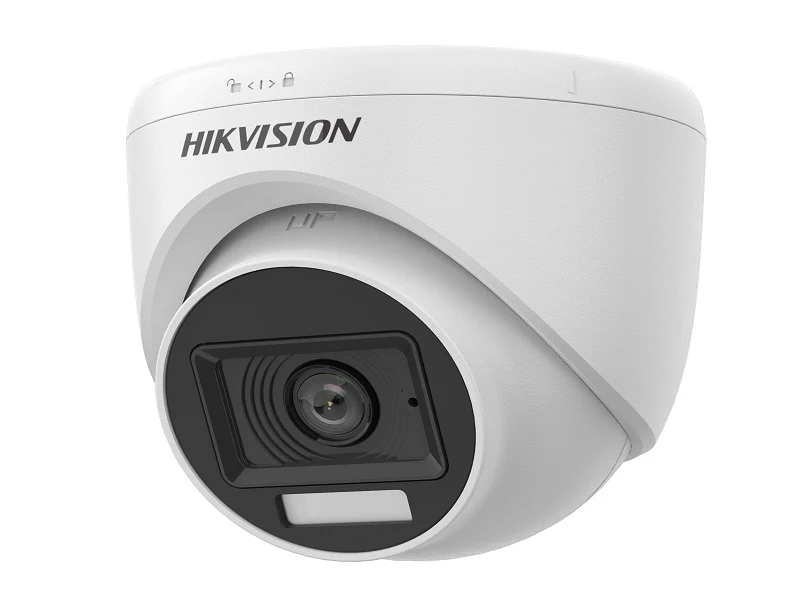

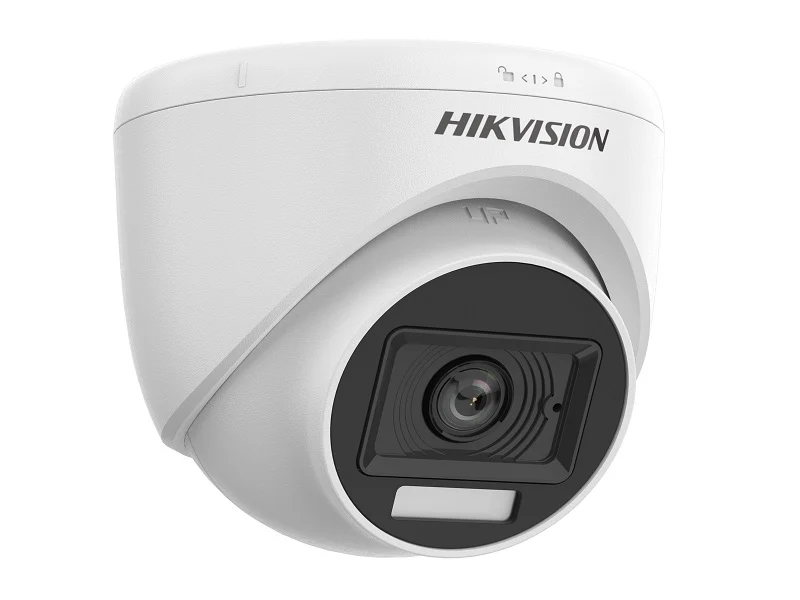

- 2MP Smart Hybrid Light Audio Fixed Turret Camera
- High quality imaging with 2 MP, 1920×1080 resolution
- High quality audio with audio over coaxial cable, built-in mic
- Smart-Hybrid light, optimize your security with flexible lighting options
- Image Sensor
- Max. Resolution
- Min. Illumination
- 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Time
- PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
- Day & Night
- ICR
- Angle Adjustment
- Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
- Pal/ntsc
- Focal Length & FOV
- 2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118°
- 3.6 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°
- Microphone
- Pickup Distance
- In a radius of up to 5 m
- Amount
- Illuminator
- Supplement Light Range
- Supplement Light Type
- Smart, IR, White Light
- Image
- Image Settings
- Frame Rate
- TVI: 1080P @ 30 fps, 1080P @ 25 fps
- AHD: 1080P @ 30 fps, 1080P @ 25 fps
- CVI: 1080P @ 30 fps, 1080P @ 25 fps
- Wide Dynamic Range (WDR)
- Digital WDR
- Image Enhancement
- DWDR/BLC/HLC/Global
- White Balance
- Auto/Manual
- AGC
- Yes
- Day/Night Mode
- Auto/Color
- Switchable TVI/AHD/CVI/CVBS
- Plastic
- 84.6 mm × Ø85.02 mm (3.33″ × Ø3.35″)
- Approx. 156 g (0.34 lb.)
- 40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication
- Hikvision-c
- Language
- English
- You are recommended to use one power adapter to supply the power for one camera.
- Consumption
- Max. 3.3 W
Specifications
- 2.8 mm, 3.6 mm fixed focal lens
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- 2 MP cmos
- 1920 (H) × 1080 (V)
- Lens
- Lens Type
- Lens Mount
- M12
- 1
- IR : Up to 20 m
- White Light : Up to 20 m
- Brightness, Sharpness, Smart IR
- Cvbs: pal/ntsc
- Material
- 12 VDC ± 25%
