Description

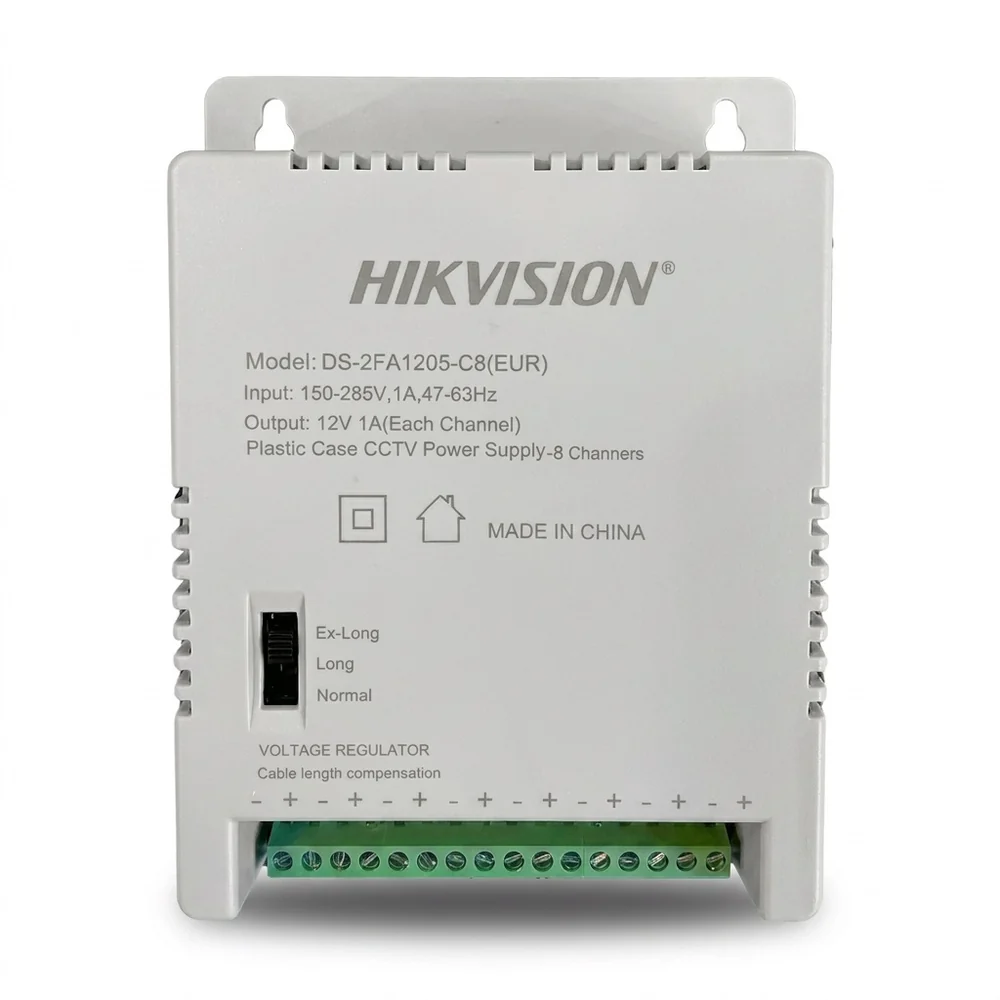

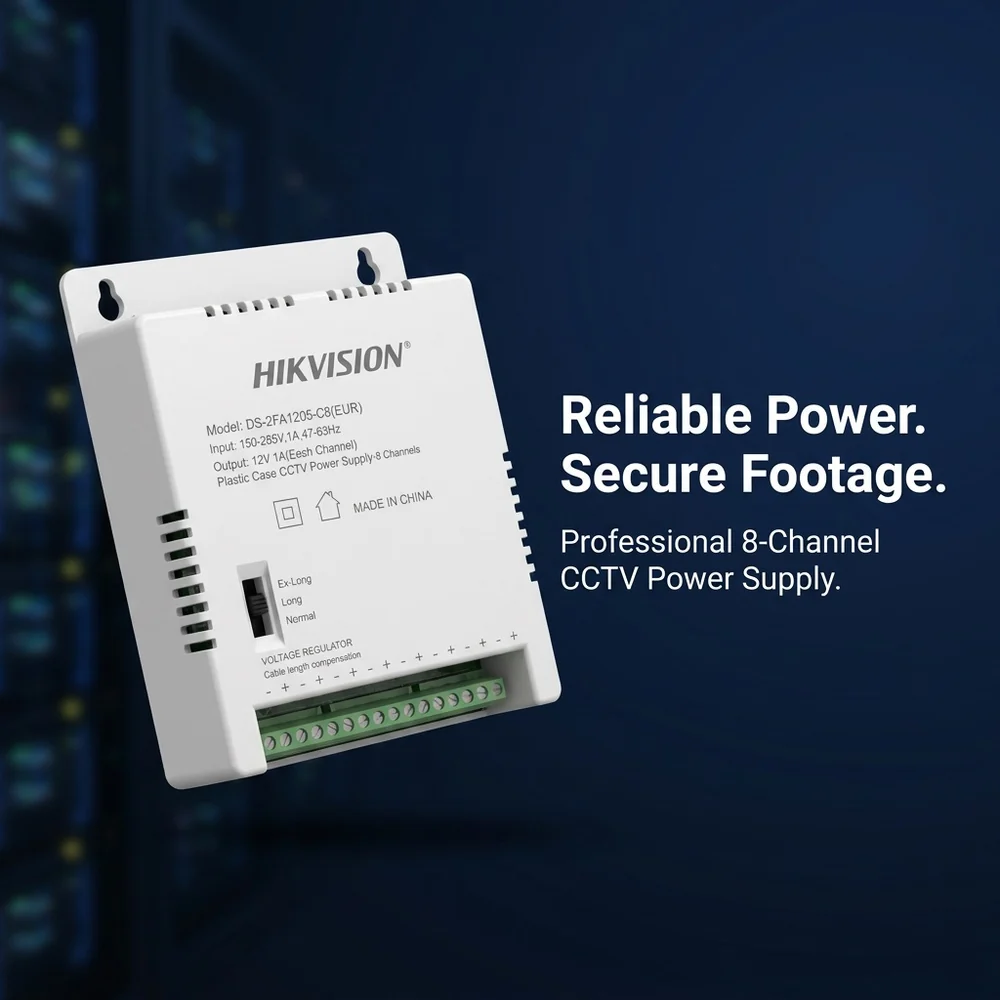

The Hikvision DS-2FA1205-C8 is an 8-channel power supply that gives each connected CCTV camera its own regulated 12V DC, 1A output from a single compact unit. Centralising power like this keeps a multi-camera installation tidy, with one power point instead of eight separate adapters scattered around a site.
Built-in protection against over current, short circuit and over voltage helps safeguard both the power supply and the cameras connected to it, while its compact housing is sized to sit neatly near a DVR or in an equipment cabinet. It also complies with relevant electromagnetic compatibility (EMC) standards for information technology equipment.
Key features
- 8 independent output channels
- 12V DC, 1A output per channel
- Multi-channel switch-mode power supply (SMPS) design
- Over current, short circuit and over voltage protection
- Compact size, suited to installation near cameras or a DVR
- Meets EMC compliance standards for IT equipment
Ideal for
- Powering up to 8 CCTV cameras from a single supply
- Tidying up multi-camera installations with one central power source
- Replacing individual camera power adapters
- Small to medium CCTV systems needing reliable, protected power
Good to know
Check that your cameras are rated for 12V DC at or below 1A each, since this supply is designed for standard analogue CCTV cameras rather than higher-draw devices such as PTZ cameras with heaters or motors. Use appropriately rated cabling between the supply and each camera to avoid voltage drop on longer runs.
