Description

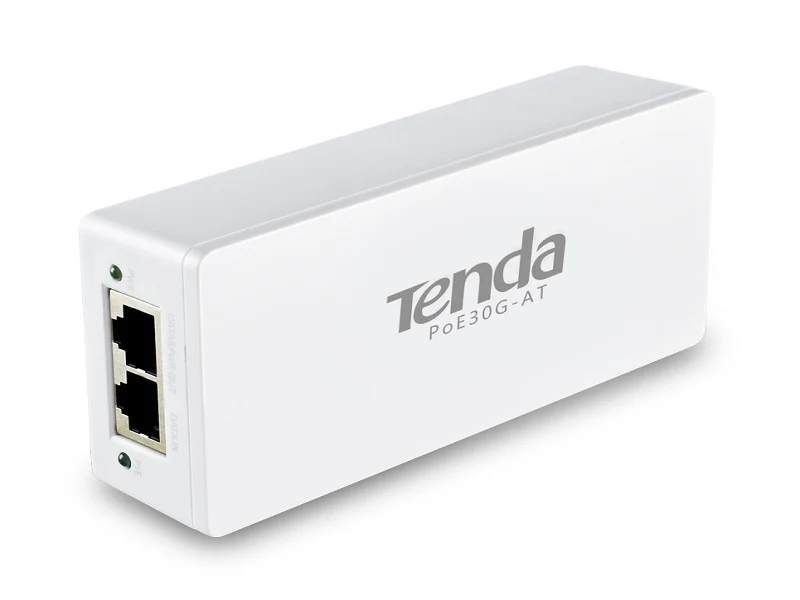

The Tenda PoE30G-AT is the IEEE802.3 AT Gigabit PoE injector, which fully conforms to the standard of wtih 802.3, transmitting power through Ethernet cable, the maximum transmission distance can reach 100 meters. The PoE injector has two Ethernet gigabit data ports and an output port combination of data and power. In addition, the device can be used for Ethernet device IEEE802.3af/ compatible PoE power applications such as wireless AP, VoIP phone and web CAM. The power supply of Ethernet cable not only provides system reliability, traditional power grid expansion, but also simplifies the deployment of power lines.
Key features
- LED Indicator PWR, PoE
- Forwarding mode Store-and-forward
Specifications
- Poe30g-at
- Network standards IEEE802.3, IEEE802.3u , IEEE802.3ab, IEEE802.3af, IEEE802.3at
- Interfaces 1*10/100/1000 Base-T Ethernet Port(Data/PoE)
- 1*10/100/1000 Base-T Ethernet Port(Data)
- Transmission media Recommended: CAT5/5e UTP or better
- Dimension 132.3mm*60mm*33mm
- Air discharge: ±10kV
- Contact discharge: ±8kV
- Transmission Rate 1000Mbps
- PoE budget Single port: AF: 15.4W, AT: 30W
- Whole device: 30W
- Power consumption 30W
- Input voltage 100-240V AC 50/60Hz
- 51V/0.8A DC (Power Adapter Output)
- Mounting Desktop mounting: support
- Environment Operating Temperature: 0℃~45℃
- Storage Temperature: -40℃~70℃
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- Certification FCC, CE , RoHS, UL
