Description

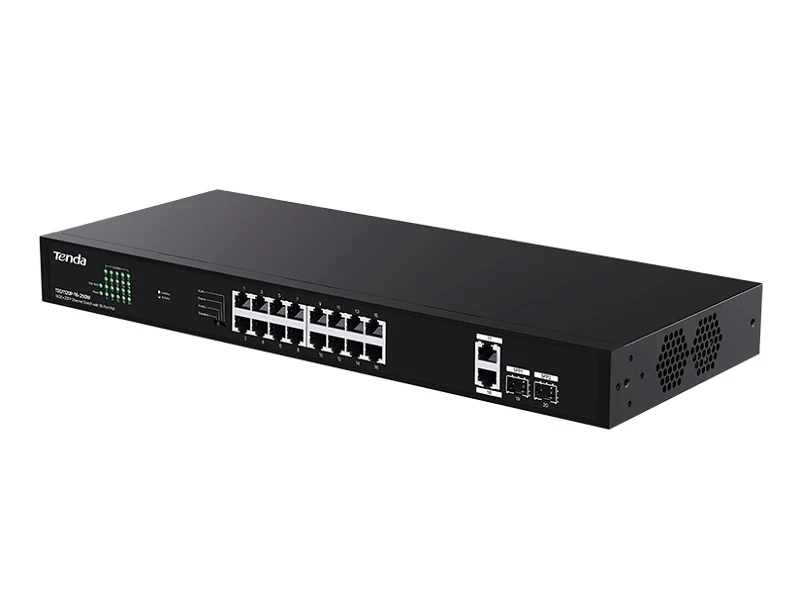

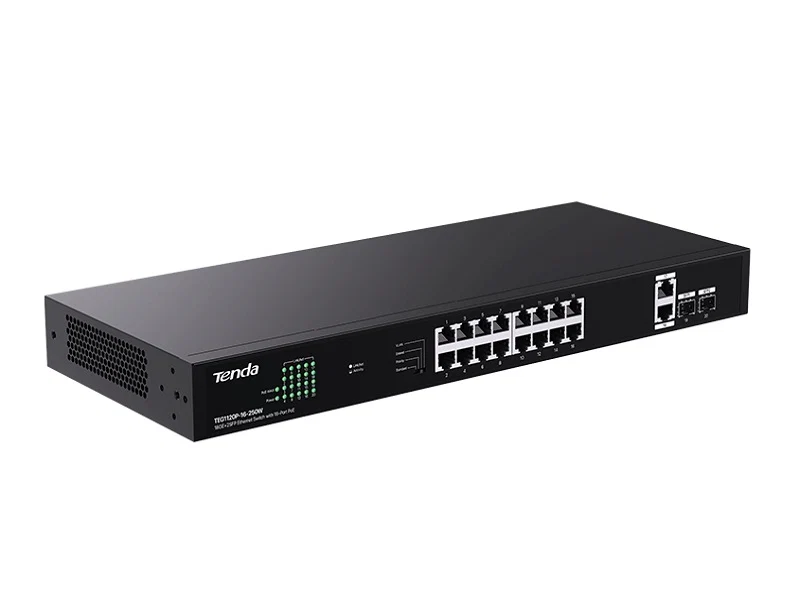

TEG1120P-16-250W is a gigabit Unmanaged Ethernet PoE switch designed by Tenda. The switch provides 16 gigabit PoE ports, 2 uplink gigabit RJ45 ports and 2 SFP ports. It supports the IEEE 802.3af/at standard and can automatically detect PDs and supply power. The maximum output power of a single port is 30W, and the power of the whole switch is 250W. It supports rack mounting, one-toggle settings, plug and play, and simple networking. It is an ideal choice for SMBs, hotels, schools, and parks with video surveillance and wireless networking requirements. 1.Standard: All ports can communicate with each other. It can be used as a common non-management PoE switch.
Key features
- Link/Act
- PoE MAX
- Forwarding mode Store-and-forward
- 2.Priority: Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested.
- 3.Extend: The maximum transmission distance of the 9-16 ports of the switch can reach 250 meters, and all ports can communicate with each other.
- 4.VLAN: Ports 1 to 16 cannot communicate with each other, but can communicate with ports 17, 18, SFP1 (19), and SFP2 (20), which can be used to isolate broadcast storms and DHCP conflicts.
Specifications
- +2SFP 250W
- Network standards IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.3af
- IEEE 802.3at
- Interfaces (18)1GE RJ45 ports
- (2)1GE SFP ports
- Transmission media Recommended: CAT5/5e UTP or better
- Fan quantity 1
- Dimension 440mm*178mm*44mm
- Level of protection Port: 6 KV
- Power’a3°6 KV
- Switch capacity 40Gbps
- Packet forwarding rate 29.8Mpps
- Buffer 4Mb
- MAC address table 8K
- PoE budget Single port: AF: 15.4W, AT: 30W
- Whole device: 230W
- Power consumption 250W
- Input voltage 100-240V AC, 50 / 60Hz
- Mounting Rack mounting : support
- Desktop mounting: support
- Wall mounting: support
- Environment Operating Temperature: 0℃~45℃
- Storage Temperature: -40℃~70℃
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
