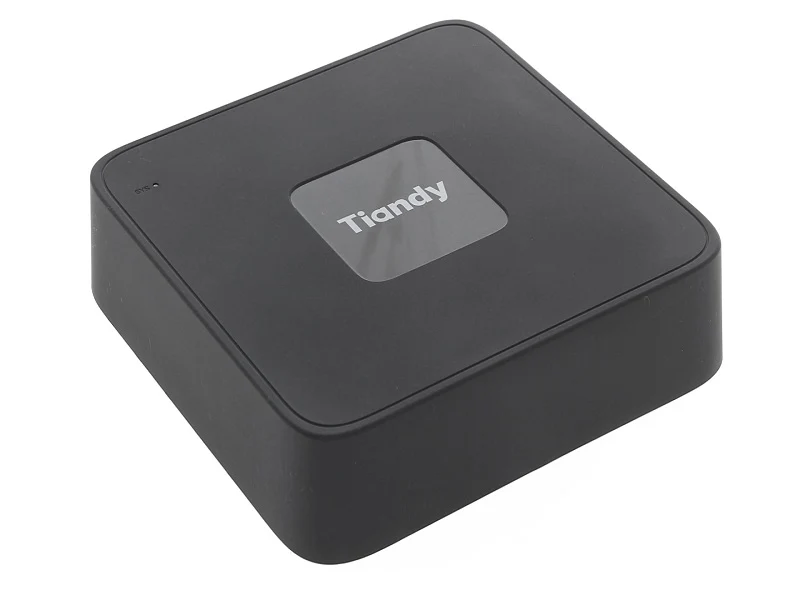

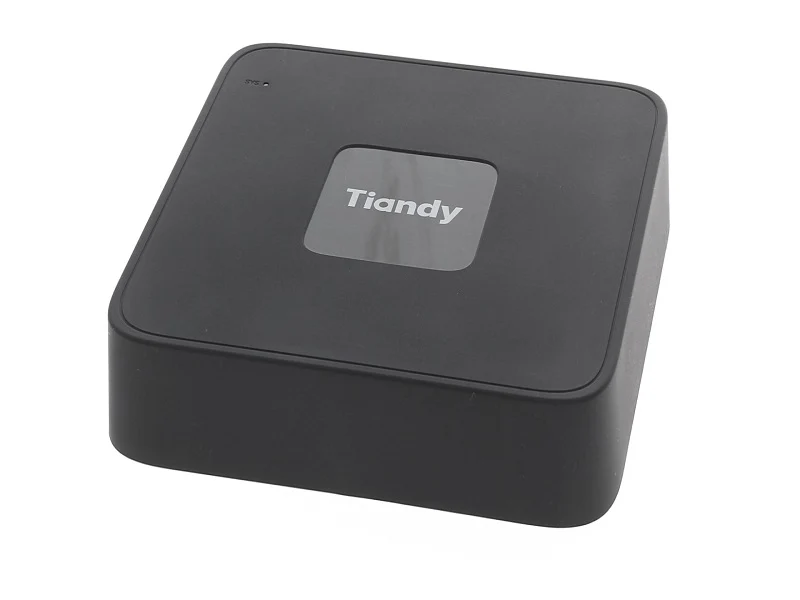

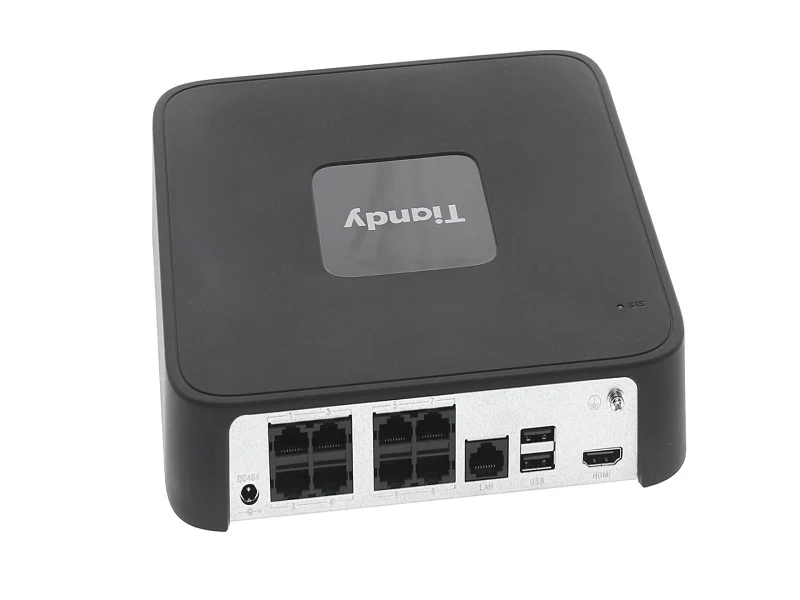

Tiandy TC-R3108/8P 8-Channel PoE NVR – 8x PoE, 2x SATA, 6MP, H.265

·S+ 265 compression effectively reduces the storage space by up to 75%. ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SSH; TCP/IP; UDP; Unicast; UPnP.

Key features

• ·Up to 6 TB capacity for each HDD
• ·PoE interface, 8×RJ45, 10/100 Mbps self-adaptive Ethernet port
• Access Channel
• Incoming Bandwidth
• Outgoing Bandwidth
• Preview Decoding Capability
• Playback Decoding Capability
• Third-party Camera Access
• Onvif; rtsp
• Compression
• Stream Type
• Mobile Phone Access
• CGI; SDK
• Web
• Record Playback
• Multi-channel Playback
• Record Mode
• Alarm Recording; Schedule Recording
• Local HDD
• Backup
• Playback Function
• Alarm
• Motion Detection; Mask Alarm; Alarm Input(IPC)
• Exceptions Alarm
• Video Loss; IP Conflict; MAC Conflict; Network Disconnected; No Disk; Illegal Access; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; PoE Overload; Voltage Alarm(IPC); RTC Failure
• Intelligent Analytics
• Smart Motion
• HDD Capacity
• Up to 6 TB capacity for each HDD
• Hdmi
• VGA
• Sata
• PoE
• PoE Budget
• UI Language
• English; Spanish; Italian; Turkish; French; Polish; Dutch; Hebrew; German; Portuguese
• NetWeight
• GrossWeight
• Network Video Recorder; Screw Pack; Mouse; European Standard Power Adapter

Specifications

• I/b/p8/c/eu/l/s/v2.0
• ·Up to 8-ch IP camera accesses
• ·Incoming/Outgoing bandwidth: 60Mbps/40Mbps
• ·S+265, H.265, S+265, H.264 video formats
• ·Max. decoding capability: 6MP(30fps)×1 or 1080P(30fps)×4
• ·4-ch synchronous playback
• ·Simultaneous HDMI and VGA outputs
• ·HDMI output at up to 1080P resolution
• ·1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
• ·Support cloud upgrade
• 8
• 60Mbps
• 40Mbps
• Resolution
• 6mp/5mp/4mp/3mp/1080p/uxga/720p/vga/4cif/dcif/2cif/cif/qcif
• 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×8, 4CIF(30fps)×8
• 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×2, 1080P(30fps)×3, 720P(30fps)×4
• HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)
• VGA: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)
• VGA: 1/2/3/4/5/6/7/8/9
• Hdmi: 1/2/3/4/5/6/7/8/9
• S+265; H.265; S+264; H.264
• G711A; G711U; adpcm_div4
• Android; iOS; P2P
• IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
• 4
• Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Digital Zoom
• 2×USB2.0
• 1×HDMI
• 1×VGA
• 1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
• 1×SATA interface
• 8×RJ45, 10/100 Mbps self-adaptive Ethernet port
• 45W
• 30W
• Standard
• IEEE 802.3 af/at
• DC48V 1.35A
• <10W(without HDD&without PoE)
• 0.47kg
• 0.89kg
• 200(L)200(W)43(H)mm
• 315(L)70(W)235(H)mm
• 10℃~+55℃ (+14℉~+131℉)
• 10%~90%RH (non-condensing)
• 20℃~+60℃ (-4℉~+140℉)
