Product Description

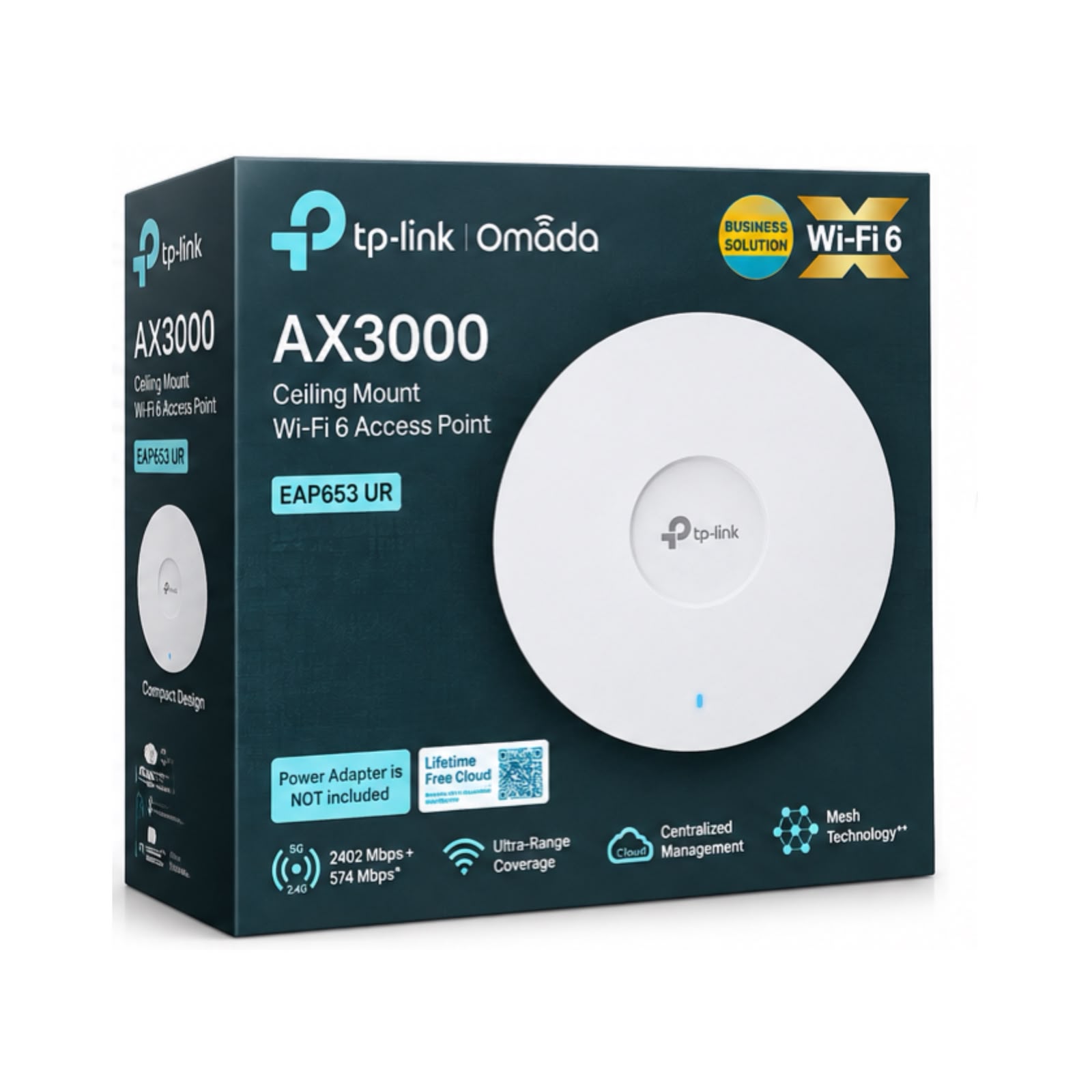

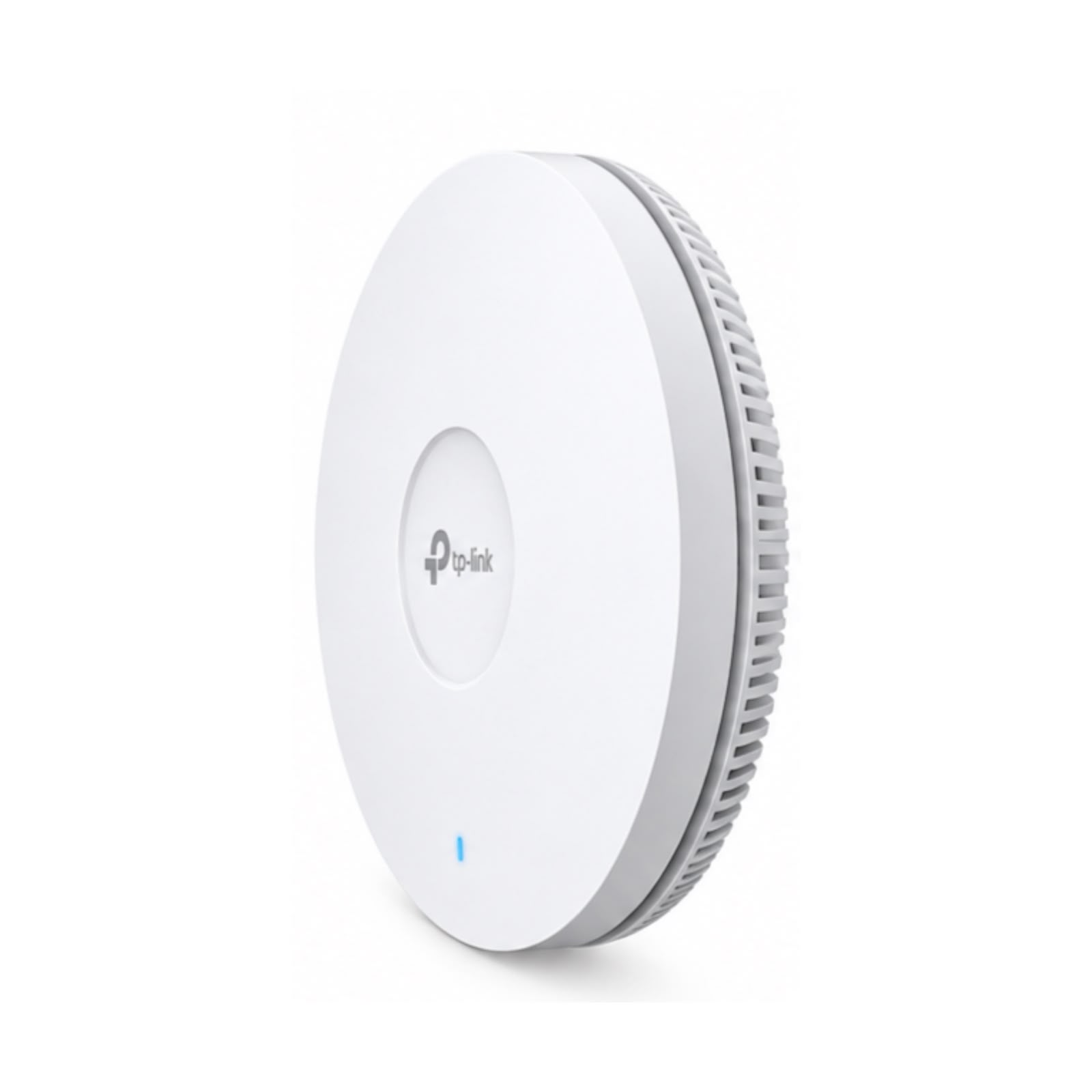

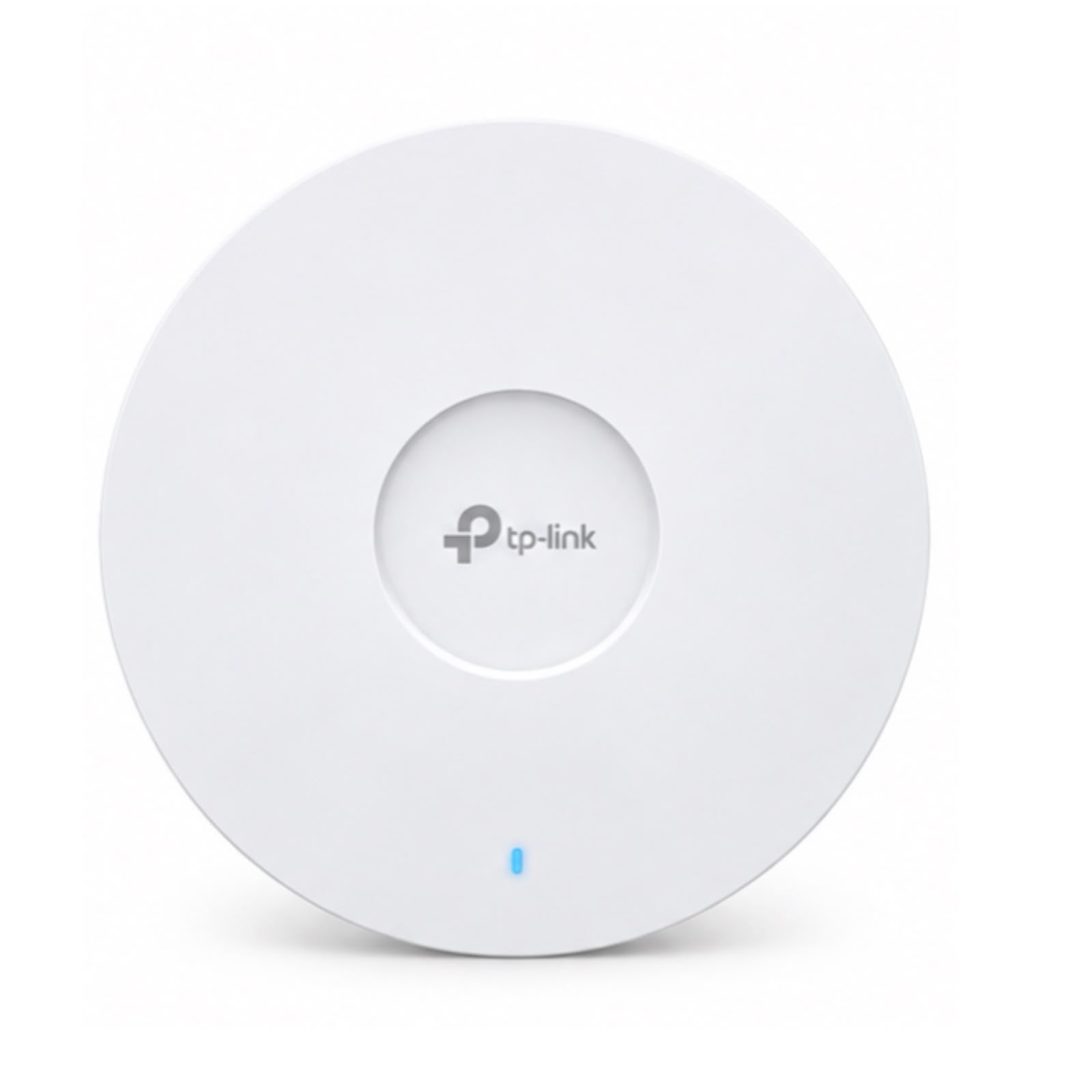

The TP-Link Omada EAP653 UR is a high-performance AX3000 dual-band Wi-Fi 6 access point designed for business, office, hospitality, education and other environments requiring reliable wireless connectivity for multiple devices.
It provides combined wireless speeds of up to 2,976 Mbps, with up to 2,402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. Wi-Fi 6 technologies including OFDMA, MU-MIMO, 1024-QAM and 160 MHz channels help improve efficiency and reduce congestion when many devices are connected.
The EAP653 UR integrates with the TP-Link Omada SDN platform, allowing centralized network management through compatible Omada controllers and cloud-based management. It also supports Omada Mesh and Seamless Roaming, making it suitable for multi-access-point installations.

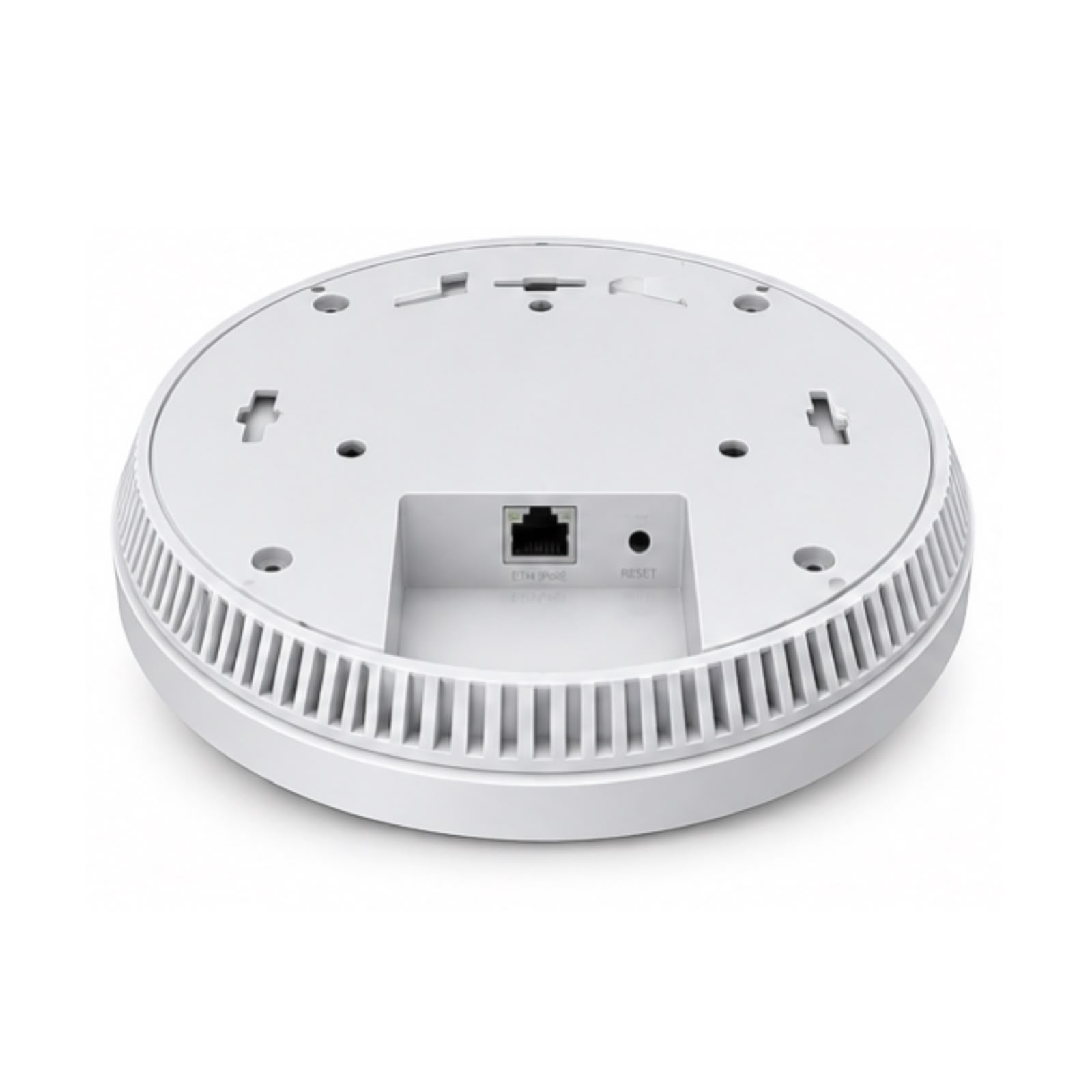

Its slim 160 × 160 × 33.6 mm ceiling-mount design provides a neat professional installation, while 802.3at PoE+ allows both power and data to be delivered through a single Ethernet cable. Please note: the power adapter is not included.
Product Specifications
Specification Details
Brand TP-Link
Product Line Omada
Model EAP653 UR
Product Type Ceiling Mount Wi-Fi 6 Access Point
Wi-Fi Standard IEEE 802.11ax/ac/n/g/b/a
Wi-Fi Class AX3000
2.4 GHz Speed Up to 574 Mbps
5 GHz Speed Up to 2,402 Mbps
Combined Speed Up to 2,976 Mbps
Wireless Bands 2.4 GHz + 5 GHz
Ethernet Port 1 × Gigabit Ethernet / PoE+
PoE Standard IEEE 802.3at PoE+
Other Power Option 12V DC / 1.5A; adapter not included
Antennas Internal omni-directional
2.4 GHz Antennas 2 × 5 dBi
5 GHz Antennas 3 × 5 dBi
Bluetooth Bluetooth 5.2
MU-MIMO Yes
OFDMA Yes
1024-QAM Yes
HE160 / 160 MHz Yes
Omada Mesh Yes
Seamless Roaming Yes
Multiple SSIDs Up to 16
Management Omada App / Omada SDN
Mounting Ceiling / Wall / Junction Box
Dimensions 160 × 160 × 33.6 mm
Colour White
TP-Link’s current EAP653 UR documentation lists the 2,402 Mbps + 574 Mbps wireless rates, Gigabit port, PoE+, Bluetooth 5.2, internal antennas and 160 × 160 × 33.6 mm dimensions.
Selling Features
* AX3000 Wi-Fi 6 performance – up to 2,976 Mbps combined wireless throughput.
* Dual-band Wi-Fi 6 – 2.4 GHz and 5 GHz connectivity.
* 2,402 Mbps on 5 GHz – designed for demanding wireless applications.
* 574 Mbps on 2.4 GHz – provides additional range and device compatibility.
* Wi-Fi 6 efficiency – OFDMA and MU-MIMO help serve multiple connected devices efficiently.
* 160 MHz channels – supports wider channels for higher peak wireless performance.
* Omada Mesh – enables flexible multi-AP wireless deployment.
* Seamless Roaming – helps maintain connectivity as users move between access points.
* Centralized Omada management – manage compatible network equipment from a unified platform.
* PoE+ powered – one Ethernet cable can provide both network connectivity and power.
* Slim ceiling-mount design – professional-looking installation for offices and commercial environments.
* Gigabit Ethernet – wired uplink for high-speed network connectivity.
* Bluetooth 5.2 – supports compatible management and networking applications.
* Business-focused networking – suitable for offices, hotels, schools, retail environments and meeting spaces.
