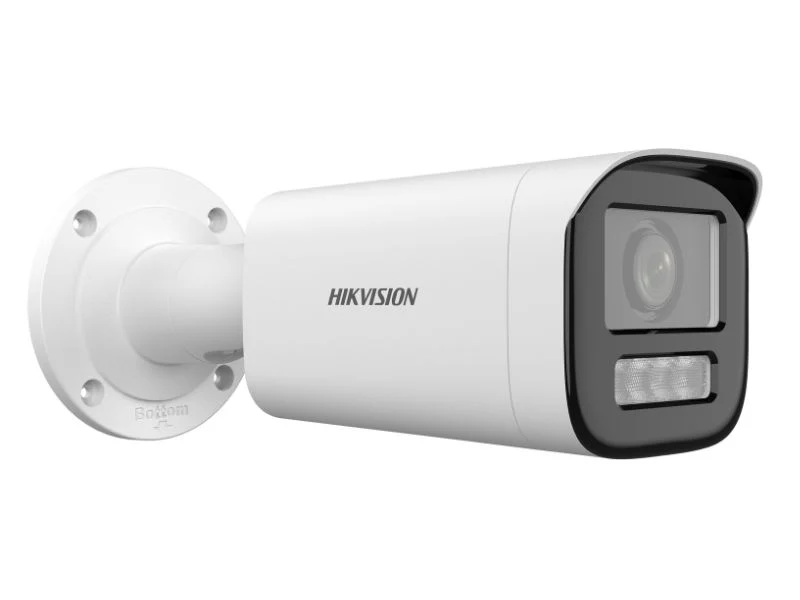

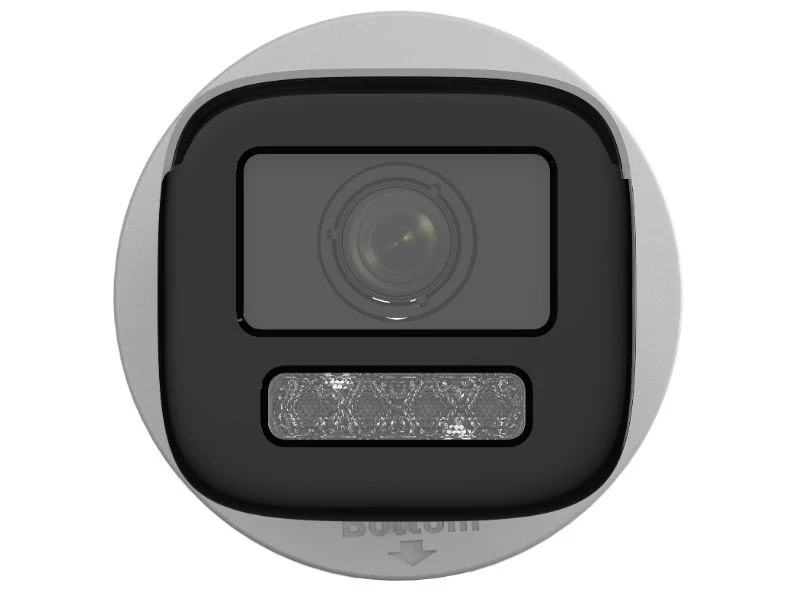

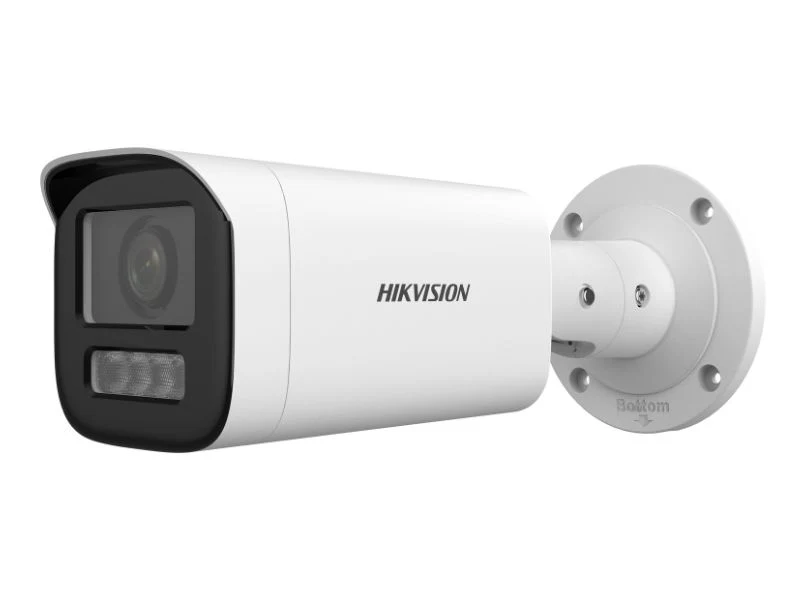

Hikvision DS-2CD2641G0-LIZSU 4MP Dual-Light Varifocal Bullet IP Camera – 2.8-12mm, 50m IR

Clear imaging against strong back light due to 120 dB true WDR technology. Support on-board storage up to 512 GB (SD card slot).

Key features

• 4 MP Dual Light MD Varifocal Bullet Network Camera
• Support Human and Vehicle Detection
• Built-in microphone for real-time audio security
• 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time
• Day & Night
• IR cut filter
• Angle Adjustment
• Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
• Varifocal lens, motorized lens, 2.8 to 12 mm
• Focal Length & FOV
• 2.8 to 12 mm, horizontal FOV 96.7° to 29.7°, vertical FOV 51.7° to 16.7°, diagonal FOV 114.3° to 34°
• Iris Type
• Fixed
• Dori
• D: 64.0 to 198.0 m, O: 25.4 to 78.6 m, R: 12.8 to 39.6 m, I: 6.4 to 19.8 m
• Illuminator
• Supplement Light Type
• IR,White Light
• Supplement Light Range
• Smart Supplement Light
• Yes
• IR Wavelength
• Main Stream
• 25 fps (1920 × 1080, 1280 × 720)
• 24 fps (1920 × 1080, 1280 × 720)
• Sub-Stream
• 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
• Baseline Profile,Main Profile,High Profile
• Main Profile
• Bit Rate Control
• Cbr,vbr
• Scalable Video Coding (SVC)
• Region of Interest (ROI)
• Mono sound
• 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
• Protocols
• Tcp/ip, icmp, dhcp, DNS, http, RTP, rtsp, rtcp, NTP, igmp, ipv6, UDP, qos, FTP, smtp
• Simultaneous Live View
• API
• Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
• Security
• Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• User/Host
• Client
• Web Browser
• Image
• Image Settings
• Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night Switch
• Day,Night,Auto,Schedule
• Wide Dynamic Range (WDR)
• SNR
• Image Enhancement
• Privacy Mask
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone
• S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K’d9, interface type: non-equilibrium
• S: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 `d9, interface type: non-equilibrium
• Alarm
• S: 1 input, 1 output (max. 12 VDC, 30 mA)
• Reset Key
• Event
• Basic Event
• Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Linkage
• Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, (-S model) trigger alarm output
• 12 VDC ± 25%, 0.9 A, max. 11 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
• PoE: IEEE 802.3af, Class 3, max. 12.9 W
• Metal & Plastic
• Ø105 mm × 252 mm (Ø4.13 × 9.92″)”
• 315 mm × 137 mm × 141 mm (12.40″ × 5.39″ × 5.55″)
• Approx. 585 g (1.3 lb.)
• Approx. 910 g (2.0 lb.)
• 30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions
• Language
• English
• Heartbeat,mirror,password reset via email,password protection,anti-banding
• Approval
• EMC
• Ce-emc: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
• Safety
• BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
• Protection

Specifications

• High quality imaging with 4 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Efficient H.265+ compression technology
• Water and dust resistant (IP67)
• 1/3″ Progressive Scan CMOS
• 2560 × 1440
• 1/3 s to 1/100,000 s
• Lens
• Lens Type
• Lens Mount
• Ø14
• Aperture
• F1.6
• Up to 50 m
• 850 nm
• 50 Hz:
• 20 fps (2560 × 1440)
• 60 Hz:
• Main stream: H.265+/H.265/H.264+/H.264,
• Sub-stream: H.265/H.264/MJPEG
• 32 Kbps to 16 Mbps
• H.264 Type
• H.265 Type
• H.264 and H.265 encoding
• 1 fixed region for main stream
• G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• 8 kHz/16 kHz
• Up to 6 channels
• Up to 32 users
• 3 user levels: administrator, operator, and user
• iVMS-4200,Hik-Connect
• Plug-in required live view: IE 10, IE 11,
• Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• 120 dB
• ≥ 52 dB
• Blc,hlc,3d DNR
• 4 programmable polygon privacy masks
• Yes,1 built-in microphone
• Material
• RCM: as/nzs cispr 32: 2015,
• IC: ICES-003: Issue 7
• UL: UL 62368-1,
• CB: IEC 62368-1: 2014+A11,
• Ce-lvd: EN 62368-1: 2014/A11: 2017,
• LOA: iec/en 60950-1
• Ce-rohs: 2011/65/EU,
• Weee: 2012/19/EU,
• Reach: Regulation (EC) No 1907/2006
• IP67: IEC 60529-2013
