Description

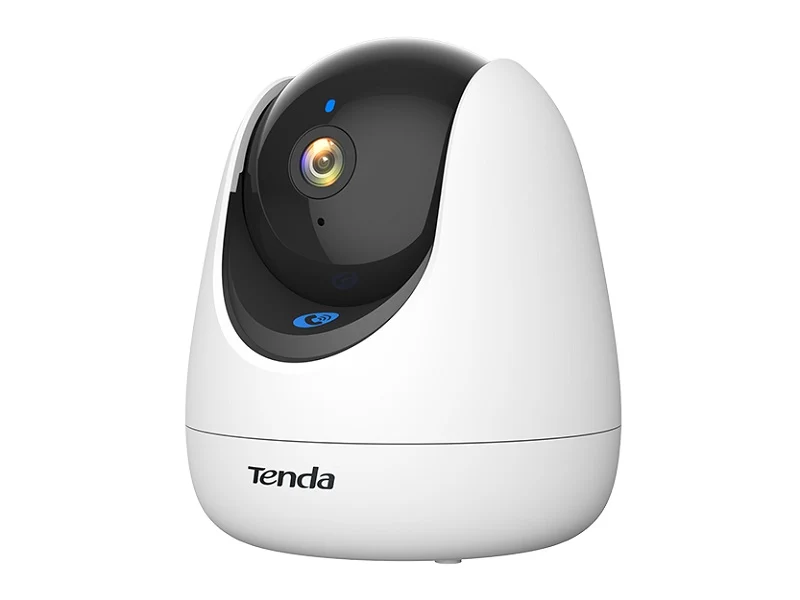

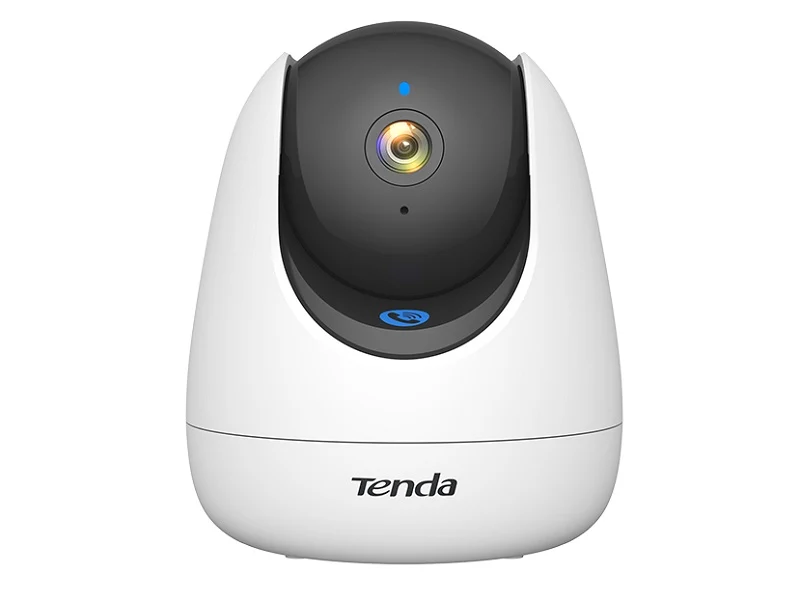

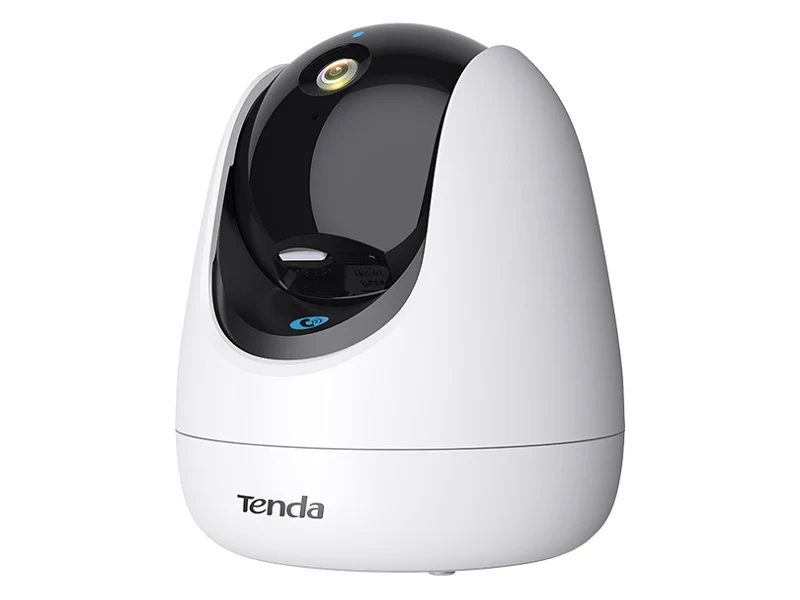

The Pan/Tilt Security Camera CP7 is a high-performance home monitoring camera that integrates such functions as 360 ° visual coverage, Wi-Fi 6, 5MP video, human detection, cry detection, one-touch call, two-way audio, sound & light alarm, DIY audio and USB-C power supply. You can connect to the network via Wi-Fi or wired ethernet. It is commonly used in indoor monitoring scenarios, such as homes, shops, offices and classrooms. FOV Horizontal : 83.3°, Vertical : 51.3°, Diagonal : 90.6°.
Key features
- Day and Night ICR type
- Supplementary Light Distance Up to 10 m/32 ft (depending on environment)
- Night Vision Mode Black & White Mode
- Main Stream Resolution 2880 x 1620, 2560 x 1440, 2304 × 1296, 1920 × 1080, 1280 × 720
- Sub Stream Resolution 640 x 360 , 352 x 288 , 320×240
- Bit Rate Control CBR,VBR
- Audio Communication Two-way Audio, One-touch Call
- Ethernet Port 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
- ONVIF Support
- Protocols TCP/IP, UDP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP
- Web Browser Chrome, Edge, Opera
- Patrol Panoramic Patrol, Preset Patrol
- Antenna Internal antenna
- Modulation DSSS/OFDM/OFDMA
- Smart Detection Motion Detection, Tampering Detection, Human Detection, Cry Detection
- Smart Linkage Sound&light Alert, Human Tracking
- Storage Built-in Micro SD Card Slot, Up to 512GB
- Reset Button Support
- LED Indicator Dual Color (red & blue) LED Indicator
- Smart Integration Amazon Alexa
- Product Dimension 103mm x 88mm x 88mm (4.1 ×3.5 × 3.5)
- Package Dimension 100mm x 100mm x 165mm (4.0 ×4.0 × 6.5)
- Installation Method Desktop, Ceiling Mounting
- Certification CE, RoHS, FCC, RCM, UKCA
- Installation Template
- Mounting Bracket
- Mounting Accessories Kit
- Quick Installation Guide
Specifications
- Image Sensor 1/3 Progressive Scan CMOS sensor
- Focal Length 4mm
- Aperture F2.0
- Supplementary Light 2 IR Lights
- IR Wavelength 850nm
- Video Encoding Format H.265, H.264
- Frame Rate 1-30fps,Default 20fps
- Bit Rate 512kbps — 4096kbps
- Audio Encoding Format G.711A, G.711U, AAC
- Audio Sampling Rate 8 kHz
- Image Enhancement DWDR, BLC, HLC, 3D DNR
- Privacy Mask 4 Areas
- Pan Movement Range 0°–355°
- Tilt Movement Range -65°–90°
- Preset 6
- Wireless Standard IEEE 802.11 b/g/n/ax
- Transmission Rate Up to 287Mbps
- Channel Width 20/40 MHz
- Frequency Band 2.4GHz: 2412MHz-2472MHz(CH1-CH13)
- Transmit Power 2.4GHz: <0.1W(EIRP)
- Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3‐SAE
- DIY Audio 3 Customized Audios
- Power 5 V 1A, Type-C Power Plug
- Material Plastic
- Product Weight 200g (0.44lb)
- With Package Weight 370g (0.82lb)
- Temperature Operating Temperature: -10°C ~ 45°C (14°F ~ 113°F)
- Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
- Humidity Operating Humidity: 10% ~ 95% RH (non-condensing)
- Storage Humidity: 3% ~ 95% RH (non-condensing)
- Power Adapter (cord length: 1.5m)
