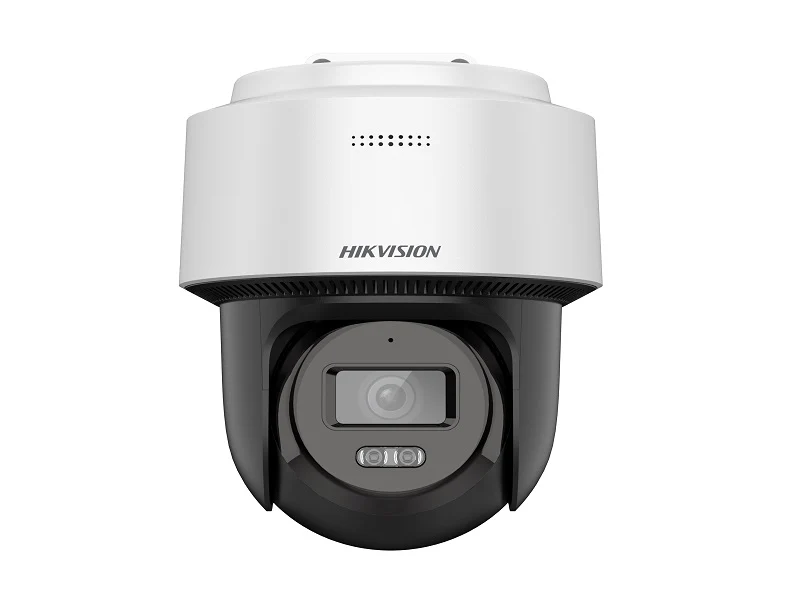

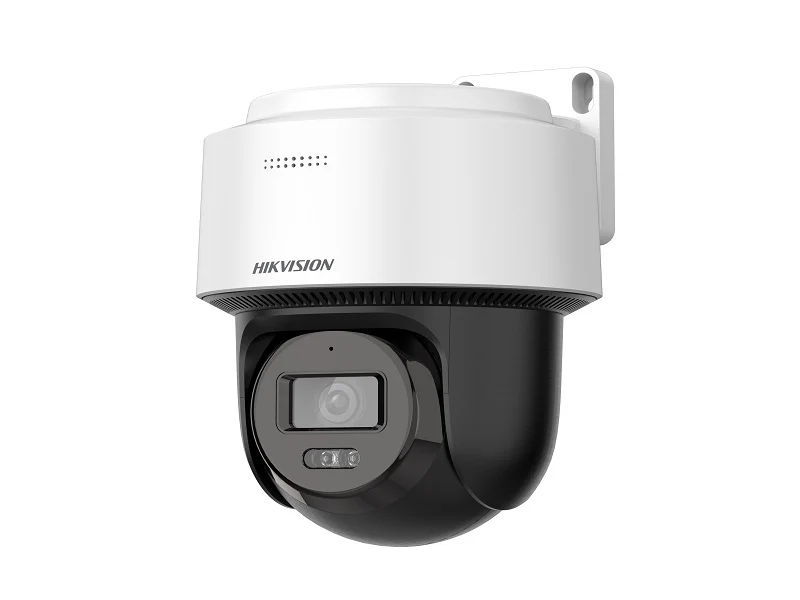

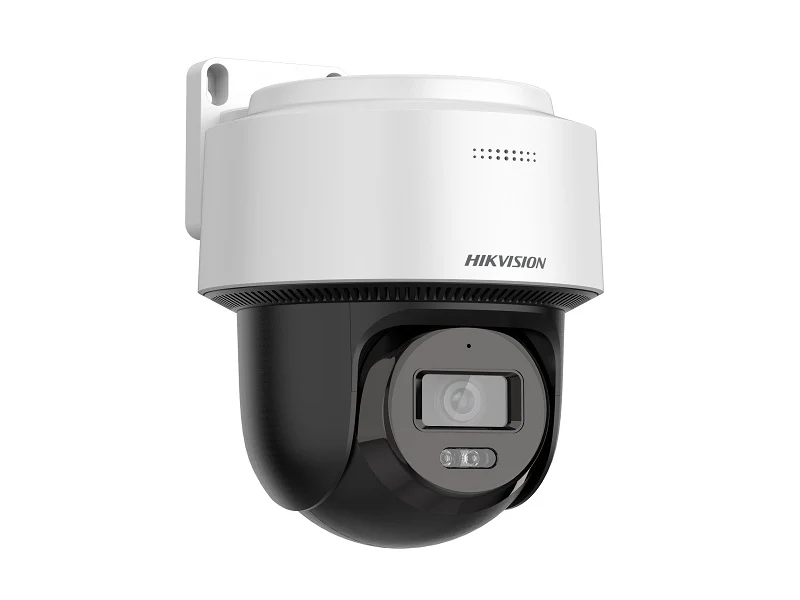

Hikvision DS-2DE2C200MWG-E 2MP IP Mini PTZ Camera – 2.8mm, 30m, ColorVu, PoE

Hik-Connect cloud service and APP for remote management and views of device. Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB.

Key features

• Irandwhite light
• 2 MP Fixed Outdoor Smart Hybrid-light PT Network Camera
• Support Human Detection and Auto-tracking Lite
• Built-in microphone and speaker for real-time audio security
• Image Sensor
• Max. Resolution
• Min. Illumination
• Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0.005 Lux @ (F2.0, AGC ON),0 Lux with light
• Focal Length
• FOV
• 2.8 mm, horizontal FOV 105°, vertical FOV 58°, diagonal FOV 123°
• 4 mm, horizontal FOV 81°, vertical FOV 44°, diagonal FOV 97°
• Illuminator
• Supplement Light Type
• IR,White Light
• Supplement Light Range
• White light distance: up to 30 m,IR distance: up to 30 m
• IR Wavelength
• PTZ
• Movement Range (Pan)
• Movement Range (Tilt)
• Pan Speed
• Tilt Speed
• Main Stream
• 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
• Sub-Stream
• 50 Hz: 25 fps (640 × 480, 640 × 360)
• 60 Hz: 30 fps (640 × 480, 640 × 360)
• Baseline profile,Main profile,High profile
• Main profile
• 16 Kbps (G.722.1)/64 Kbps (G.711)/32 to 192 Kbps (MP2L2)/16 Kbps (G.726)/16 to 64 Kbps (AAC-LC)/8 to 48 Kbps (PCM)
• Yes
• Protocols
• IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
• API
• ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
• Image
• Image Settings
• Saturation, brightness, contrast, and sharpness adjustable by client software or web browser
• Wide Dynamic Range (WDR)
• Digital WDR
• Image Enhancement
• 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in Microphone
• Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Event
• Basic Event
• Motion detection (support alarm triggering by specified target type (human)), video tampering alarm, exception
• Linkage
• Upload to FTP/memory card, notify surveillance center, send email, trigger capture, audible warning, auto-tracking lite
• 12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
• PoE: IEEE 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10.5 W
• Camera dimension: 163.9 mm × 185.8 mm × 131.9 mm (6.45″ × 7.31″ × 5.19″)
• With package dimension: 224 mm × 164 mm × 230 mm (8.82 × 6.46″ × 9.06″)”
• Plastic
• 30 °C to 40 °C (-22 °F to 104 °F). Humidity 90% or less (non-condensing)
• Mirror, password protection, watermark
• Approval
• EMC
• Ce-emc (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)
• Safety
• CB (IEC 62368-1: 2014 + a11),ce-lvd (EN 62368-1: 2014/A11: 2017)
• Protection

Specifications

• High quality imaging with 2 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Water and dust resistant (IP66)
• 1/2.9″ Progressive Scan CMOS
• 1920 × 1080
• Lens
• 2.8 mm, 4 mm
• Aperture
• F2.0
• 850 nm
• 0° to 345°
• 0° to 80°
• Up to 25°/s
• Up to 20°/s
• H.265, H.264, mjpeg
• 32 Kbps to 8 Mbps
• H.264 Type
• H.265 Type
• G.711/g.722.1/g.726/mp2l2/pcm//aac-lc
• 8 kHz,16 kHz
• BLC, HLC, 3D DNR
• 1 built-in microphone
• 1 built-in speaker
• Camera weight: 600 g (1.32 lb.)
• With package weight: 900 g (2.0 lb.)
• Material
• CE-RoHS (2011/65/EU),Reach (Regulation (EC) No 1907/2006)
• IP66 (IEC 60529-2013)
